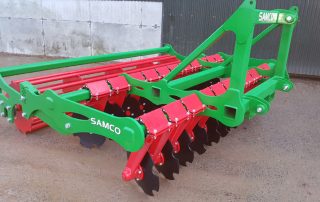

Disc Harrow

  • Disc angle set to 15 degress
  • Disc size from 410mm to 570mm diamiater
  • Optional edged / notched or plain disc available
  • Disc spacing 125mm
  • Depth of disc harrow is adjustable via the rear roller
  • Capable of working in depths from 3cm to 15cm (depending on disc size)
  • Each leg comes with elastic sprung rubber bushings
  • Working speeds of 8 kph to 15 kph
  • 3-meter – tractor requirements greater than 100 HP
  • 4-meter folding – tractor requirements greater than 150 HP

Click here to download our Brochure
