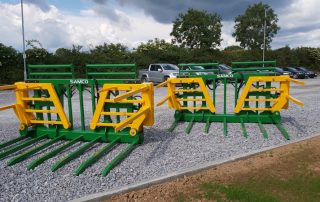

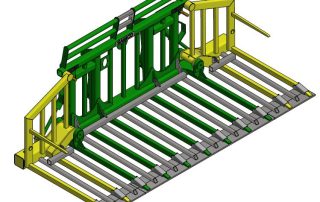

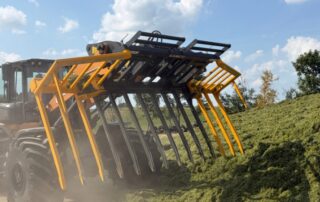

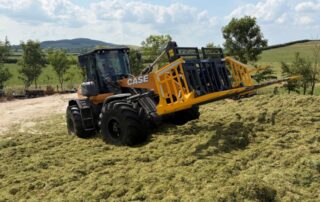

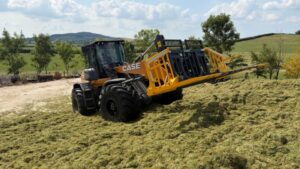

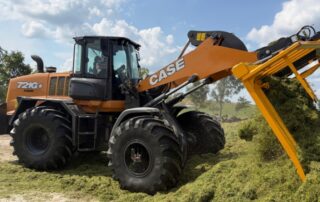

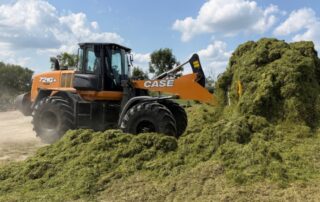

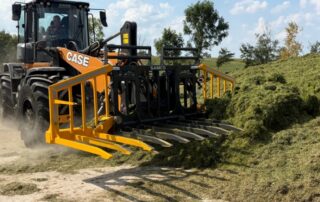

Silage Fork

  • Available in 13ft with 5ft or 6ft square tines available
  • Heavy duty Hardox 70mm x 50mm square tines
  • Tines are secured and welded through the 180mm hot rolled main frame
  • 330mm distance between tines
  • 60mm folding pins with self-aligned ball hinges
  • 10mm bottom wearing plate to protect wearing the main frame
  • Heavy duty folding rams with hydraulic accumulators
  • Safety pins for road transport
  • Optional transport protection frame
  • Overall weight 1300 kgs
  • 40mm locking pins giving extra strength when working mode
  • Hard wearing replaceable plastic shield on main frame
